The current position:home > Glass polishing machine Glass polishing machine
 |
 |
 |

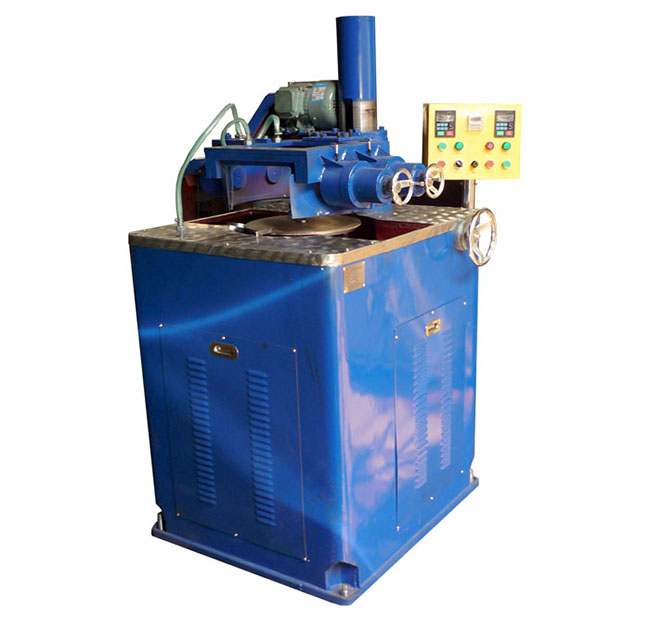

When BCS-SM450 grinding machine works, the grinding disc fixedly rotates at variable speed, the workpiece holder rotates constantly at a high speed, the workpiece clamp head can be lifted up and down, and the grinding head is provided with a diamond wheel for cylindrical grinding of workpiece made from different materials. It is mainly applicable to glass and other nonmetal elements.
| Maximum Grinding Diameter mm | 50-200 | |
| Minimum Thickness of Workpiece mm | 2 | |
| Roughness Ra | 0.8 | |
| Thickness Deviation mm | ±0.05 | |
| Diamond Wheel | Diameter mm | 450 |
| Grinding Wheel Granularity (Mo) | 80-100 | |
| Speed r/min | 1200 | |
| Motor kw | 2.2 | |
| Worktable | 600 | |
| 7.5 | ||
| Overall Dimensions (L*W*H) mm | 700*750*1200 | |
| Weight kg | 2200 | |
